Linear08- Magnetic Track Head
LINEAR08
magnetic track
head
overview

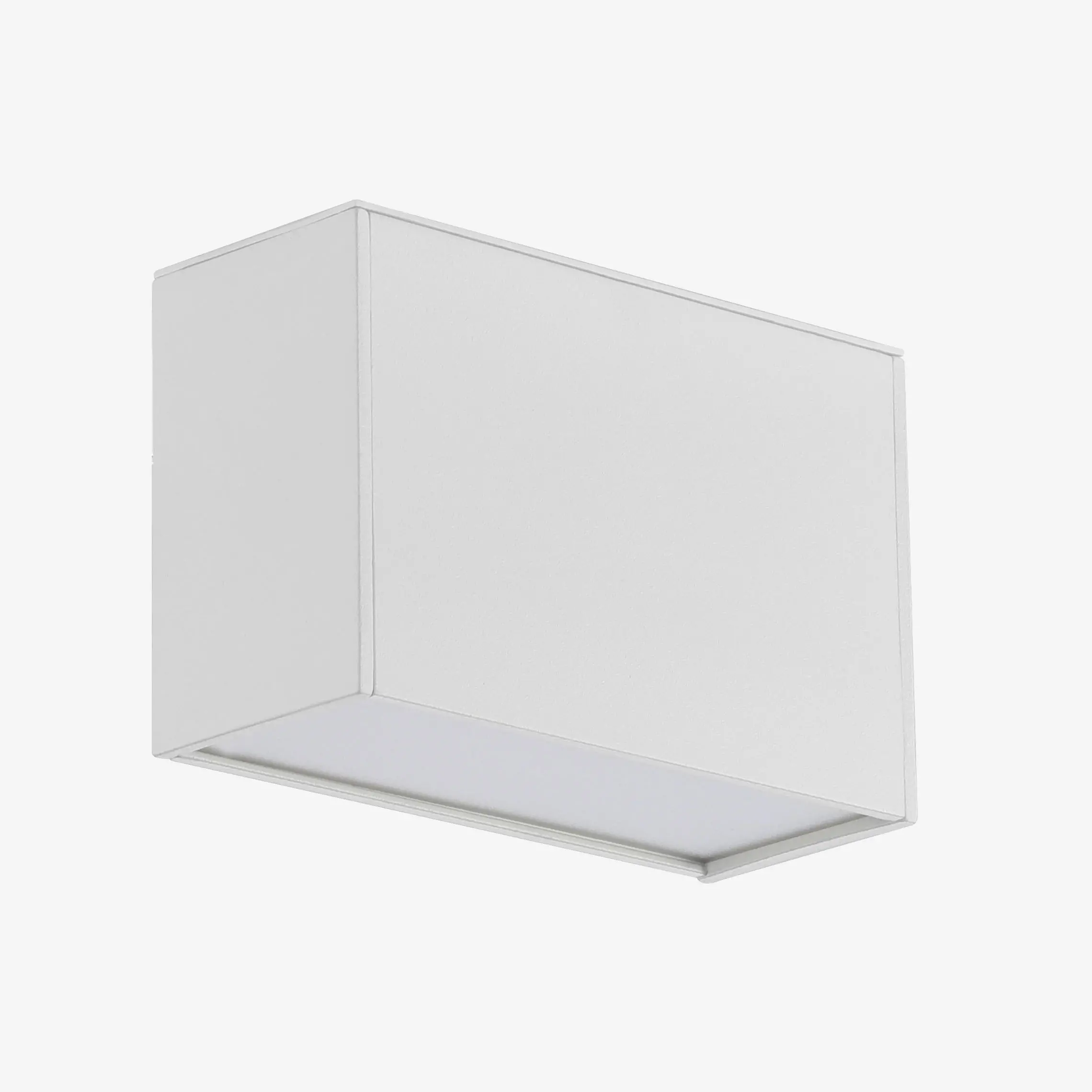

Linear08 is a magnetic track head with diffused light. External dimming interface available. Plug and play along the track where you please.
Aluminum body, polycarbonate lens. ETL certified, 5 years warranty.
specifications
TYPE
Magnetic Track Head
VOLTAGE
24VDC
WATTAGE
4W
OUTPUT LUMEN
70lm/W
UGR
N/A
CCT
2700K/3000K/400k/5000K
BEAM ANGLE
Diffused
SWIVELING
N/A
CRI
90/80
DIMMABLE
Yes
HOUSING COLOR
Black/White
REF. COLOR
Black
IP
20
LIFE SPAN
50000 Hours

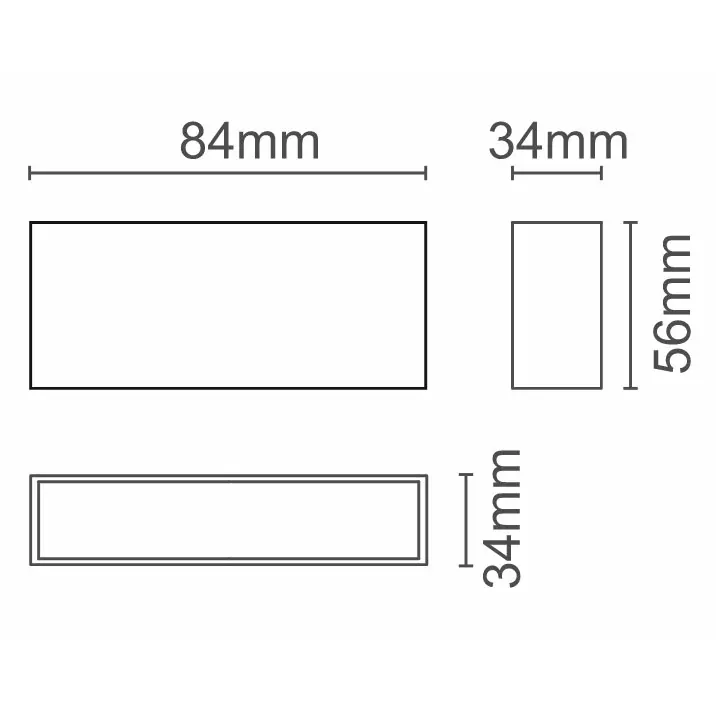

dimensions
downloads
