Dot12 - Magnetic Track Head
dot12
magnetic track
head
overview
Dot12 is a magnetic track head with three different beam angles. External dimming interface available.
Aluminum body, polycarbonate lens. ETL certified, 5 years warranty.
specifications
TYPE
Magnetic Track Head
VOLTAGE
24VDC
WATTAGE
16W
OUTPUT LUMEN
97lm/W
UGR
N/A
CCT
2700K/3000K/4000k/5000K
BEAM ANGLE
12°, 34°, 48°
SWIVELING
No
CRI
90/80
DIMMABLE
Yes
HOUSING COLOR
Black/White
IP
20
LIFE SPAN
50000 Hours

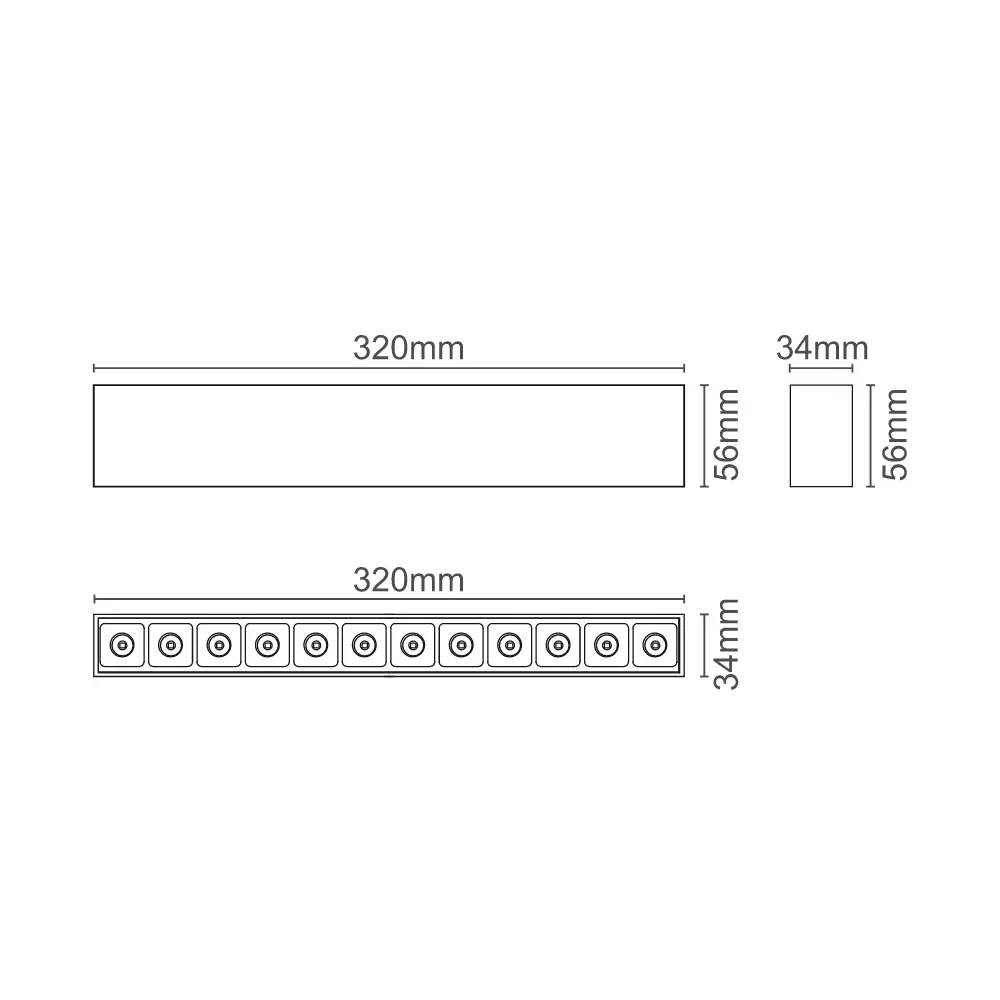

dimensions
downloads
