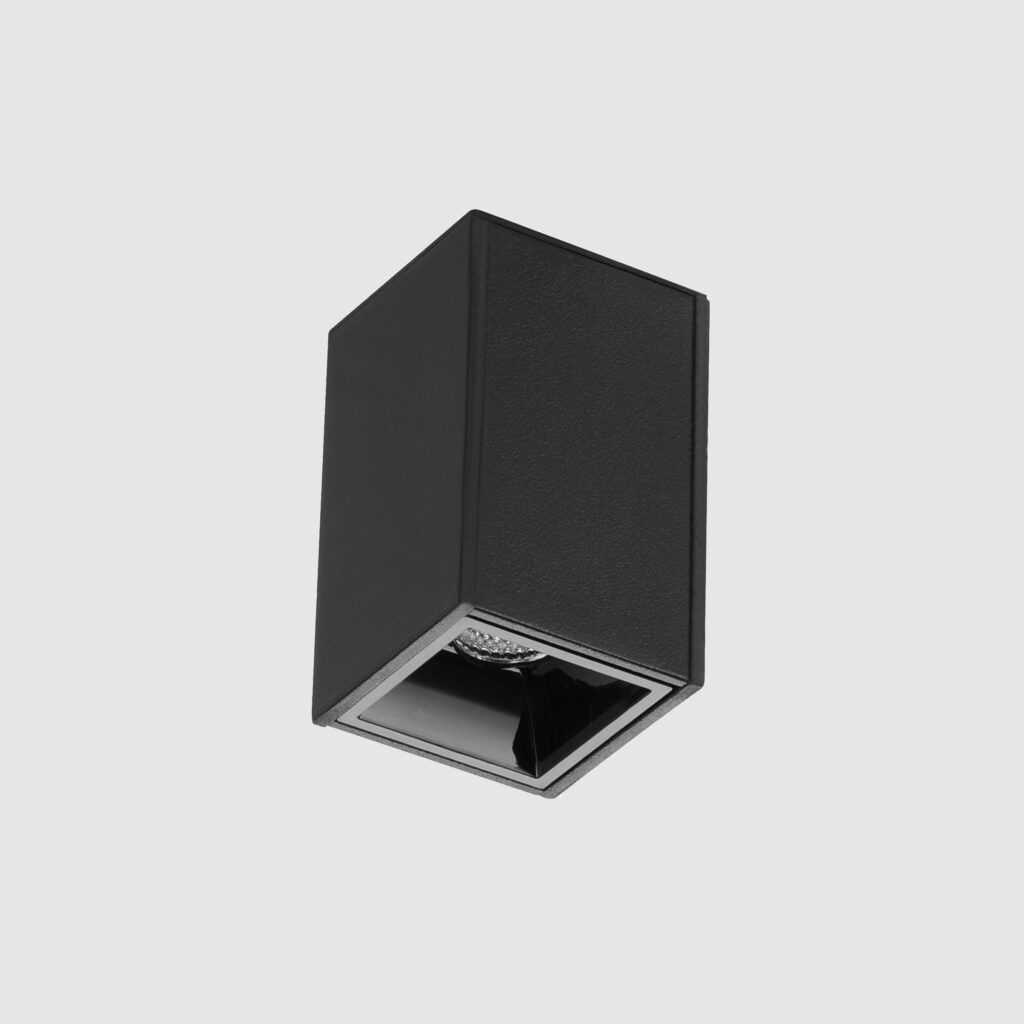

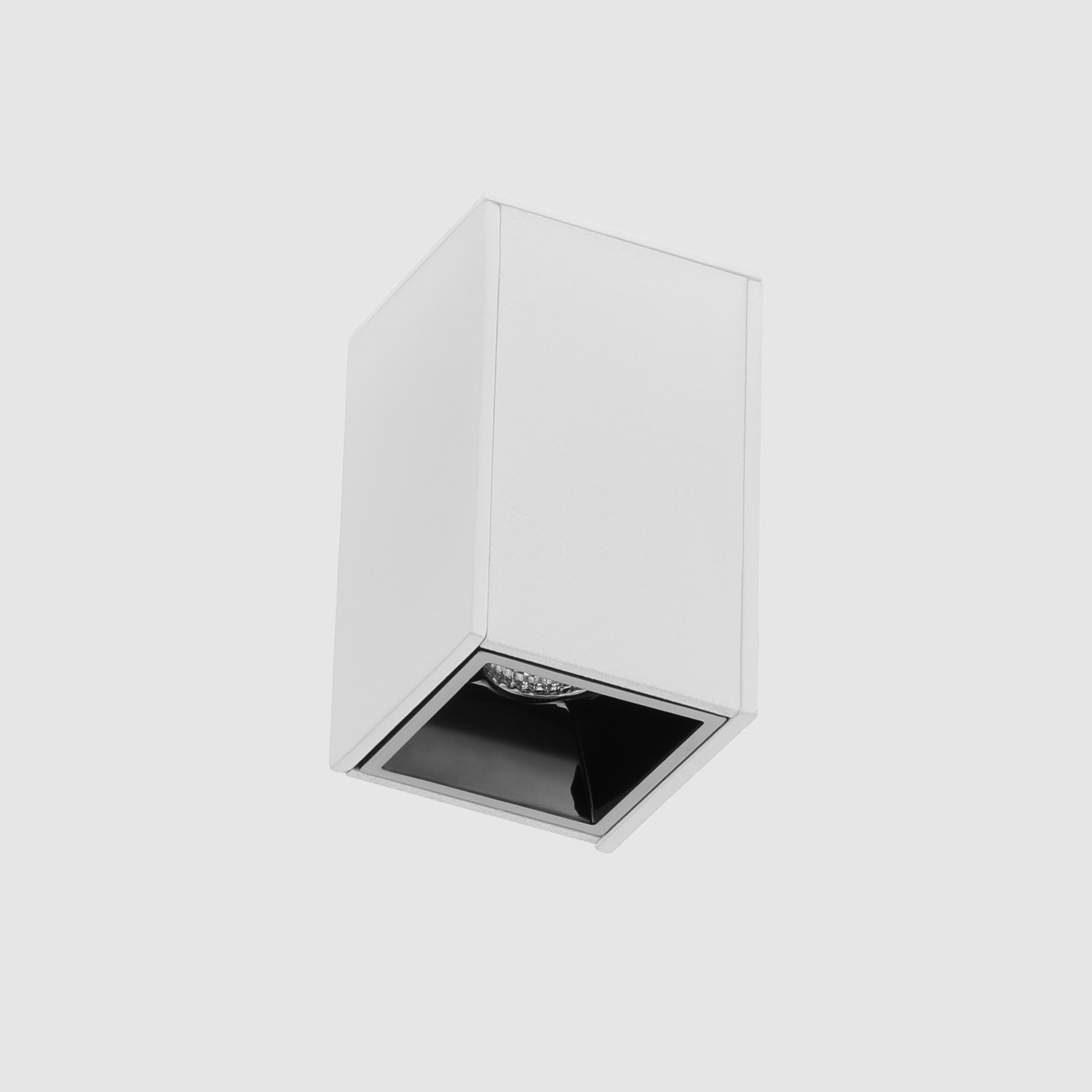

Dot01 - Magnetic Track Head
DOT01
magnetic track
head
overview
Dot01 is a magnetic track head with three different beam angles. External dimming interface available.
Aluminum body, polycarbonate lens. ETL certified, 5 years warranty.
specifications
TYPE
Magnetic Track Head
VOLTAGE
24VDC
WATTAGE
2W
OUTPUT LUMEN
95lm/W
UGR
N/A
CCT
2700K/3000K/400k/5000K
BEAM ANGLE
12°/34°/48°
SWIVELING
N/A
CRI
90/80
DIMMABLE
Yes
HOUSING COLOR
Black/White
REF. COLOR
Black
IP
20
LIFE SPAN
50000 Hours

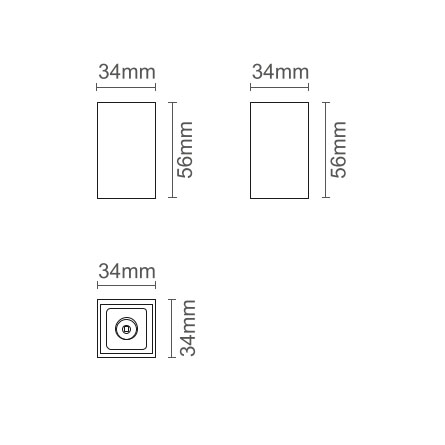

dimensions
downloads
- Tagged: Dot Series, Magnetic Track
